- Part of the battery mount assembly
- A loose battery hold down frame could lead to trouble starting your car
- Can be replaced at home with moderate auto skills
Your Nissan's combustion engine gives it the power required to perform, but what powers the combustion engine in the first place? When you push the “start” button, a chemical reaction inside the battery sparks the rest of the system to life. Without a working, properly installed Nissan battery, no amount of gasoline can keep your hatchback, CUV, or truck performing as designed.
If you notice your Nissan engine is taking longer to crank to life or that the radio and dome lights aren't working quite right, you may think there's something wrong with the battery. However, there are certain times when the wear of other electrical components may be to blame — particularly if you cleaned or replaced your Nissan battery recently.
If this scenario seems familiar, you may want to turn your attention to the battery mount assembly, including the tray, corresponding support rods, and the hold-down brace.
With age, mileage, and contact with the elements, some of these components may corrode or warp. A wobbly or faulty Battery Hold Down Frame can cause your battery to bounce around, potentially shortening its life or interrupting the connections that transfer power to your Nissan.
Troubleshoot the issue by parking on a flat surface and letting the engine cool completely. Then, use a voltmeter to test your Nissan battery and check the mounting area for signs of rust. If the battery is clean and the voltage sufficient, verify that the negative and positive cables are affixed to the right battery posts. All good? Tug at the battery case gently to see if it jiggles with pressure. If it moves with a slight pull, re-tightening the bolts and getting a new, authentic Nissan Battery Hold Down Frame might fix the issue.
To install a replacement hold down frame, begin with your Nissan off, cooled down, and parked in a low-traffic and flat surface. Pop the hood like you did when inspecting the battery. Use a socket ratchet or equivalent alternative to unscrew the nuts securing your worn Battery Hold Down Frame, and if necessary, set them aside for reuse. Gently remove the old hold down strap and secure the new Battery Hold Down Frame in its place, making sure all holes line up with the corresponding rods. Once everything's aligned, secure the frame using the bolts or nuts, being mindful of not tightening them too much or too little. As always, check your Nissan owner's manual or visit your nearest authorized service center for information specific to your unique model and trim!
Repairing a malfunctioning Nissan battery assembly starts with genuine replacement parts made for your Nissan Leaf 2013-2021. Shop authentic parts from Nissan Parts & Accessories Find authentic parts with Nissan Parts & Accessories for the ultimate fitment and performance.

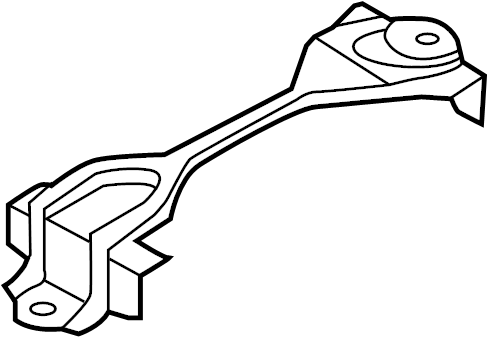

This Electrical System Battery Hold Down Frame, part 244203NF0A, fits the following vehicle models and years: Nissan Leaf 2013-2021.
FRAME-BATTERY FIX
Fits Leaf
